Webhooks¶

Webhooks enable external systems to trigger and interact with your agent workflows in real-time. Think of them as HTTP callbacks that let third-party services (payment processors, CRMs, monitoring systems, etc.) push events directly into your agent ecosystem.

Quick Start¶

1. Register a Webhook Handler¶

Built-in workflows can handle webhooks using the OnWebhook() method. You can use either a synchronous or async handler:

Synchronous Handler (for simple, non-async operations)¶

C#

using DotNetEnv;
using System.Net;
using Xians.Lib.Agents.Core;
using Xians.Lib.Agents.Messaging;

// Load environment variables
Env.Load();

var serverUrl = Environment.GetEnvironmentVariable("XIANS_SERVER_URL")
    ?? throw new InvalidOperationException("XIANS_SERVER_URL not found");
var xiansApiKey = Environment.GetEnvironmentVariable("XIANS_API_KEY")
    ?? throw new InvalidOperationException("XIANS_API_KEY not found");

// Initialize platform
var xiansPlatform = await XiansPlatform.InitializeAsync(new()
{
    ServerUrl = serverUrl,
    ApiKey = xiansApiKey
});

// Register agent (system-scoped can handle webhooks across all tenants)
var xiansAgent = xiansPlatform.Agents.Register(new()
{
    Name = "WebhookTestAgent",
    IsTemplate = true
});

// Define built-in workflow
var integratorWorkflow = xiansAgent.Workflows.DefineBuiltIn(name: "Integrator");

// Handle incoming webhooks (synchronous)
integratorWorkflow.OnWebhook((context) =>
{
    // Your webhook processing logic here
    Console.WriteLine($"Received: {context.Webhook.Name}");
    context.Respond(new { status = "success" });
});

// Start the agent
await xiansAgent.RunAllAsync();

Async Handler (when you need async operations)¶

Use the async version when you need to perform async operations like database calls, HTTP requests, etc.:

C#

// Handle incoming webhooks (async)
integratorWorkflow.OnWebhook(async (context) =>
{
    // Perform async operations
    var result = await ProcessWebhookAsync(context.Webhook.Payload);
    context.Respond(new { status = "success", result });
});

2. Call Your Webhook¶

Once your agent is running, send POST requests to:

Text Only

POST {SERVER_URL}/api/user/webhooks/builtin

Required Query Parameters¶

Parameter	Description	Example
`apikey`	Your Xians API key	`sk-Xnai-abc123...`
`agentName`	The target agent name	`WebhookTestAgent`
`workflowName`	The target workflow name	`Integrator`
`webhookName`	Any identifier for this webhook event	`Email Received`
`participantId`	Any User/participant identifier	`user@example.com`

Optional Query Parameters¶

Parameter	Description	Example
`activationName`	Optional activation identifier to distinguish multiple instances	`instance-1`
`timeoutSeconds`	Request timeout (default: 30s)	`60`
`scope`	Custom scope for context (same as Chat messages)	`tenant-123`
`authorization`	Auth token for your logic	`Bearer jwt-token`

Request Body¶

Send your webhook payload as JSON in the request body:

JSON

{
  "orderId": "12345",
  "amount": 99.99,
  "status": "completed"
}

Complete Examples¶

Basic Webhook Call with cURL¶

Bash

curl -X POST "http://localhost:5005/api/user/webhooks/builtin?apikey=sk-Xnai-zSsUNO5KaeyHefrWEyQvvyOBmX0&timeoutSeconds=30&agentName=WebhookTestAgent&workflowName=Integrator&webhookName=OrderCompleted&participantId=customer@example.com" \
  -H "Content-Type: application/json" \
  -d '{"orderId": "12345", "amount": 99.99, "status": "completed"}'

With Activation Name (for multiple instances)¶

Use activationName to target specific workflow instances:

Bash

curl -X POST "http://localhost:5005/api/user/webhooks/builtin?apikey=sk-Xnai-abc123&agentName=WebhookTestAgent&workflowName=Integrator&webhookName=OrderCompleted&activationName=instance-1&participantId=customer@example.com" \
  -H "Content-Type: application/json" \
  -d '{"orderId": "12345", "amount": 99.99, "status": "completed"}'

With Scope and Authorization¶

Bash

curl -X POST "http://localhost:5005/api/user/webhooks/builtin?apikey=sk-Xnai-abc123&agentName=WebhookTestAgent&workflowName=Integrator&webhookName=OrderCompleted&scope=tenant-123&authorization=Bearer-token&participantId=customer@example.com" \
  -H "Content-Type: application/json" \
  -d '{"orderId": "12345", "amount": 99.99, "status": "completed"}'

Using Postman¶

Method: POST
URL: http://localhost:5005/api/user/webhooks/builtin
Query Parameters:
apikey: sk-Xnai-abc123
agentName: WebhookTestAgent
workflowName: Integrator
webhookName: OrderCompleted
participantId: customer@example.com
activationName (optional): instance-1
timeoutSeconds (optional): 60
scope (optional): tenant-123
authorization (optional): Bearer jwt-token
Headers:
Content-Type: application/json

Body (raw JSON):

JSON

{
  "orderId": "12345",
  "amount": 99.99,
  "status": "completed"
}

3. Monitor Webhooks in the UI¶

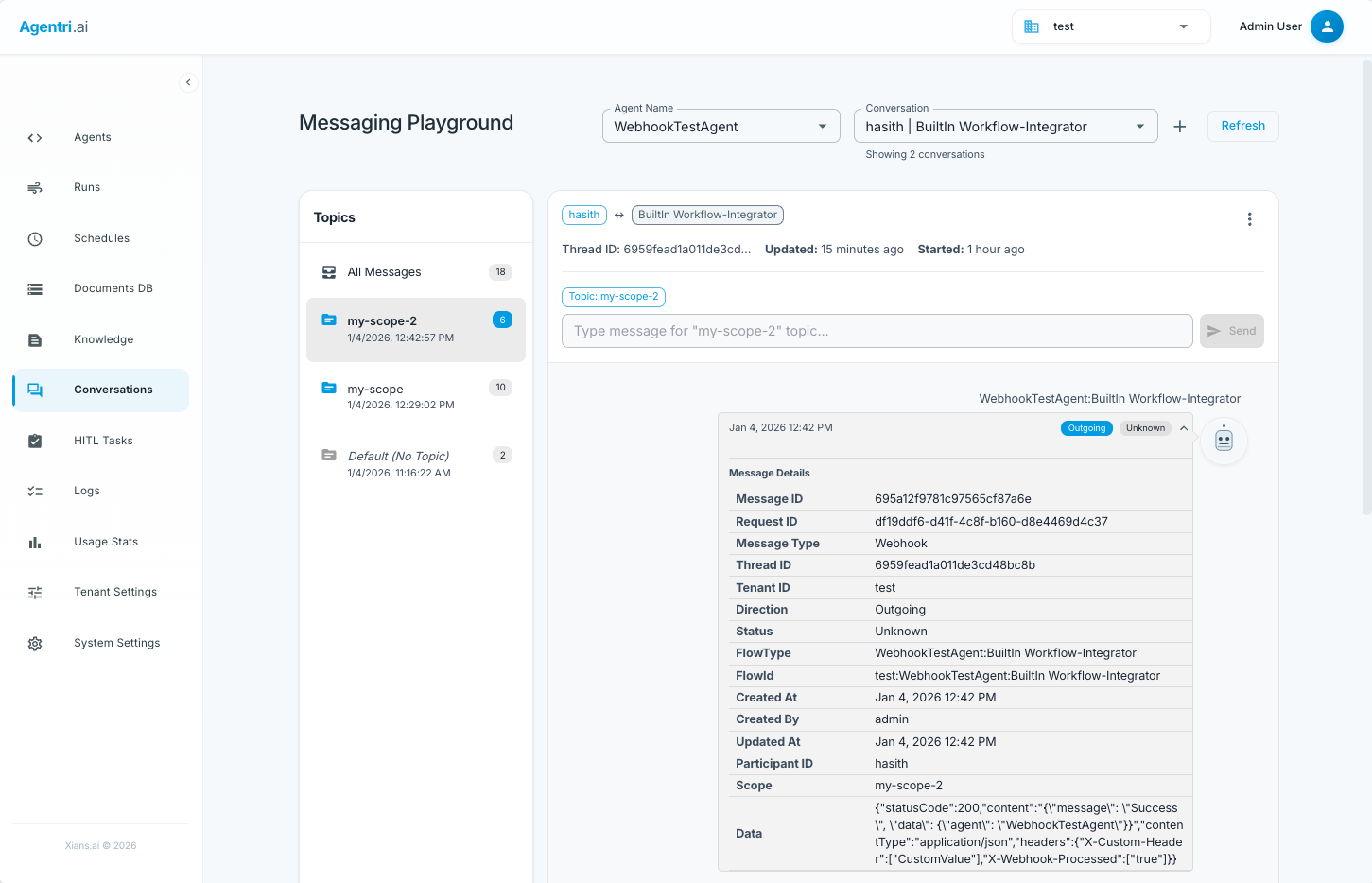

All webhook messages are visible in the Messaging Playground in the Xians UI, just like chat and data messages. This provides full visibility into webhook execution, timing, and metadata.

Webhook Messages in Messaging Playground

In the Messaging Playground, you can:

View webhook messages alongside other message types in the conversation view
Inspect message details including:
Message Type: Webhook
Webhook name and participant ID
Request ID for tracking
Scope and authorization data
Complete payload data
Execution status and timing
Track conversations created by webhook invocations
Debug webhook flows by observing the complete message history

This makes it easy to monitor, debug, and audit webhook integrations without needing to add custom logging.

Extracting Webhook Information¶

The WebhookContext provides access to all webhook data through the Webhook property:

C#

integratorWorkflow.OnWebhook((context) =>
{
    // Extract webhook metadata
    var webhookName = context.Webhook.Name;           // "OrderCompleted"
    var participantId = context.Webhook.ParticipantId; // "customer@example.com"
    var scope = context.Webhook.Scope;                // "tenant-123"
    var authorization = context.Webhook.Authorization; // "Bearer-token"
    var requestId = context.Webhook.RequestId;        // Unique request ID
    var tenantId = context.Webhook.TenantId;          // Tenant context

    // Payload comes as a JSON string - deserialize it
    if (context.Webhook.Payload is not string jsonString)
    {
        Console.WriteLine("Invalid payload type");
        return;
    }

    var payload = JsonSerializer.Deserialize<OrderPayload>(jsonString);
    Console.WriteLine($"Processing order {payload.OrderId} for ${payload.Amount}");
});

// Define your payload type
public class OrderPayload
{
    public string OrderId { get; set; }
    public decimal Amount { get; set; }
    public string Status { get; set; }
}

Available Webhook Properties¶

Property	Type	Description
`Name`	`string`	Webhook name from query parameter
`ParticipantId`	`string`	Participant identifier
`Payload`	`string?`	Request body as JSON string (deserialize to use)
`Scope`	`string?`	Optional scope context
`Authorization`	`string?`	Optional auth token
`RequestId`	`string`	Unique request identifier
`TenantId`	`string`	Tenant context

Responding to Webhooks¶

You have three ways to respond, all with full control over HTTP status codes, headers, and content.

Option 1: Simple Object Response¶

Perfect for straightforward JSON responses:

C#

integratorWorkflow.OnWebhook((context) =>
{
    // Process webhook...

    // Respond with an object (auto-serialized to JSON)
    context.Respond(new
    {
        message = "Success",
        processedAt = DateTime.UtcNow
    });
});

Option 2: Full Control Response¶

For custom status codes, headers, and content types:

C#

integratorWorkflow.OnWebhook((context) =>
{
    context.Response = new WebhookResponse
    {
        StatusCode = HttpStatusCode.OK,
        Content = "{\"message\": \"Success\", \"id\": \"12345\"}",
        ContentType = "application/json",
        Headers = new Dictionary<string, string[]>
        {
            ["X-Custom-Header"] = new[] { "CustomValue" },
            ["X-Request-Id"] = new[] { context.Webhook.RequestId }
        }
    };
});

Option 3: Static Factory Methods¶

Convenient helpers for common responses:

C#

integratorWorkflow.OnWebhook(async (context) =>
{
    try
    {
        // Process webhook...
        var result = await ProcessOrderAsync(context.Webhook.Payload);

        // Success response
        context.Response = WebhookResponse.Ok(new
        {
            success = true,
            orderId = result.OrderId
        });
    }
    catch (ValidationException ex)
    {
        // Bad request (400)
        context.Response = WebhookResponse.BadRequest(ex.Message);
    }
    catch (NotFoundException ex)
    {
        // Not found (404)
        context.Response = WebhookResponse.NotFound(ex.Message);
    }
    catch (Exception ex)
    {
        // Internal server error (500)
        context.Response = WebhookResponse.InternalServerError(
            $"Failed to process webhook: {ex.Message}");
    }
});

Available Factory Methods¶

Method	Status Code	Description
`WebhookResponse.Ok(object)`	200	Success with JSON data
`WebhookResponse.Ok(string)`	200	Success with custom content
`WebhookResponse.BadRequest(message)`	400	Validation/client error
`WebhookResponse.NotFound(message)`	404	Resource not found
`WebhookResponse.InternalServerError(message)`	500	Server error
`WebhookResponse.Error(code, message)`	Custom	Custom status code

Common Patterns¶

Authentication & Authorization¶

C#

integratorWorkflow.OnWebhook(async (context) =>
{
    // Verify authorization token
    var authToken = context.Webhook.Authorization;
    if (string.IsNullOrEmpty(authToken) || !await ValidateTokenAsync(authToken))
    {
        context.Response = WebhookResponse.Error(
            HttpStatusCode.Unauthorized,
            "Invalid or missing authorization token");
        return;
    }

    // Process authenticated webhook
    // ...
});

Payload Validation¶

C#

integratorWorkflow.OnWebhook((context) =>
{
    if (context.Webhook.Payload is not string jsonString)
    {
        context.Response = WebhookResponse.BadRequest("Invalid payload format");
        return;
    }

    OrderPayload? payload;
    try
    {
        payload = JsonSerializer.Deserialize<OrderPayload>(jsonString);
    }
    catch (JsonException)
    {
        context.Response = WebhookResponse.BadRequest("Invalid JSON payload");
        return;
    }

    if (string.IsNullOrEmpty(payload?.OrderId))
    {
        context.Response = WebhookResponse.BadRequest("Missing required field: orderId");
        return;
    }

    // Continue processing...
});

Async Processing¶

C#

integratorWorkflow.OnWebhook(async (context) =>
{
    var webhookName = context.Webhook.Name;
    var payloadJson = context.Webhook.Payload as string;

    // Start async processing
    _ = Task.Run(async () =>
    {
        await ProcessLongRunningTaskAsync(webhookName, payloadJson);
    });

    // Respond immediately
    context.Respond(new
    {
        status = "accepted",
        message = "Processing started",
        requestId = context.Webhook.RequestId
    });
});

Important Notes¶

Error Handling: Always wrap webhook logic in try-catch blocks to provide meaningful error responses
Timeouts: Default timeout is 30 seconds; adjust via timeoutSeconds parameter for long-running operations
Security: Use the authorization parameter to pass and validate tokens in your webhook handler
Request IDs: Use context.Webhook.RequestId for logging and tracking webhook requests

Next Steps¶

Learn about Agents & Workflows for built-in workflows and system-scoped agents
Explore Replying to Users for more messaging capabilities
Check out SDK Patterns for common implementation patterns
